HTML Syntax

<figure>
   ...
   <figcaption> ... </figcaption>
</figure>

NOTE: Both start and end tags are required.

The <figcaption> element represents a caption or legend for a <figure> element.

The element can be defined as the first or last child of its parent <figure> element, which will place the caption at the top or bottom of the figure, respectively.

<figcaption> can contain additional information describing the rest of the contents of its parent element, typically to annotate photos, illustrations, diagrams, quotations, code snippets, etc.

The <figcaption> content itself may include a limited number of HTML elements.

NOTE: This element can only be used within the <figure> element.

The following example shows how the <figcaption> element may be used.

<figure>
   <img src="/shared/images/ado_ds.gif" width=400
      alt="dataset structure" />

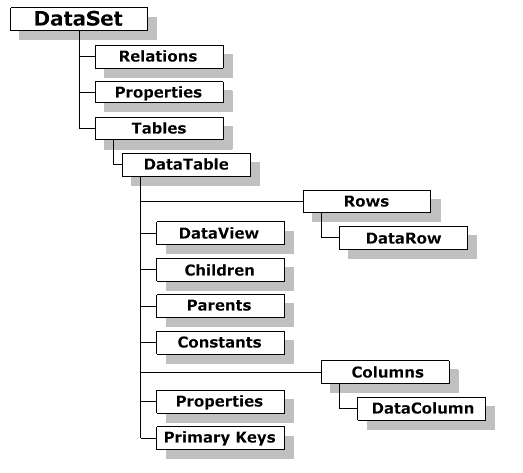

   <figcaption><i>The internal structure of a DataSet</i></figcaption>
</figure>

which would render on a Web page as follows:

The following example shows how CSS may be applied to alter the appearance of the <figcaption> element.

figcaption {
   background-color: darkslategray; color: #fff;
   font: italic smaller sans-serif;
   padding: 8px; text-align: center;
}

which would render on a Web page as follows:

• 4.4.13 The figcaption element

FIGURE
